Last year I built some Christmas tree ornaments to give away as presents to my friends and family. This year I built some snowflakes.
Similar to last year, I interfaced an 8-bit Microchip MCU with a TI 16-channel LED driver. Last year’s ornaments drove 5 RGB LEDs plus one solid LED (16 total channels) while this year’s ornament drove 16 solid LEDs. New to this year was a little push button that could be pressed to switch between 5 different lighting patterns.
Last year’s tree ornament was powered by a AAA battery. I wasn’t very satisfied with the heft and thickness of the final assembly so I instead went with a 3V CR2450 coin battery. This lowered the total current capacity by about 400mAh so I had to make some software changes to optimize battery life.
Additionally I removed the bulky hard power switch from last year’s design and instead implement a low-power mode that turns off the LED driver and turns off unnecessary hardware peripherals like the MSSP I2C module. This sort of worked - there was some strange bug somewhere (I’m not sure hardware or software) where the LED’s would sometimes remain on even with the driver turned off. I didn’t have enough time to squash the bug before Christmas!
I also threw in some test points for easier I2C debugging. That’s one of those things that you learn from having previously struggled with the issue.

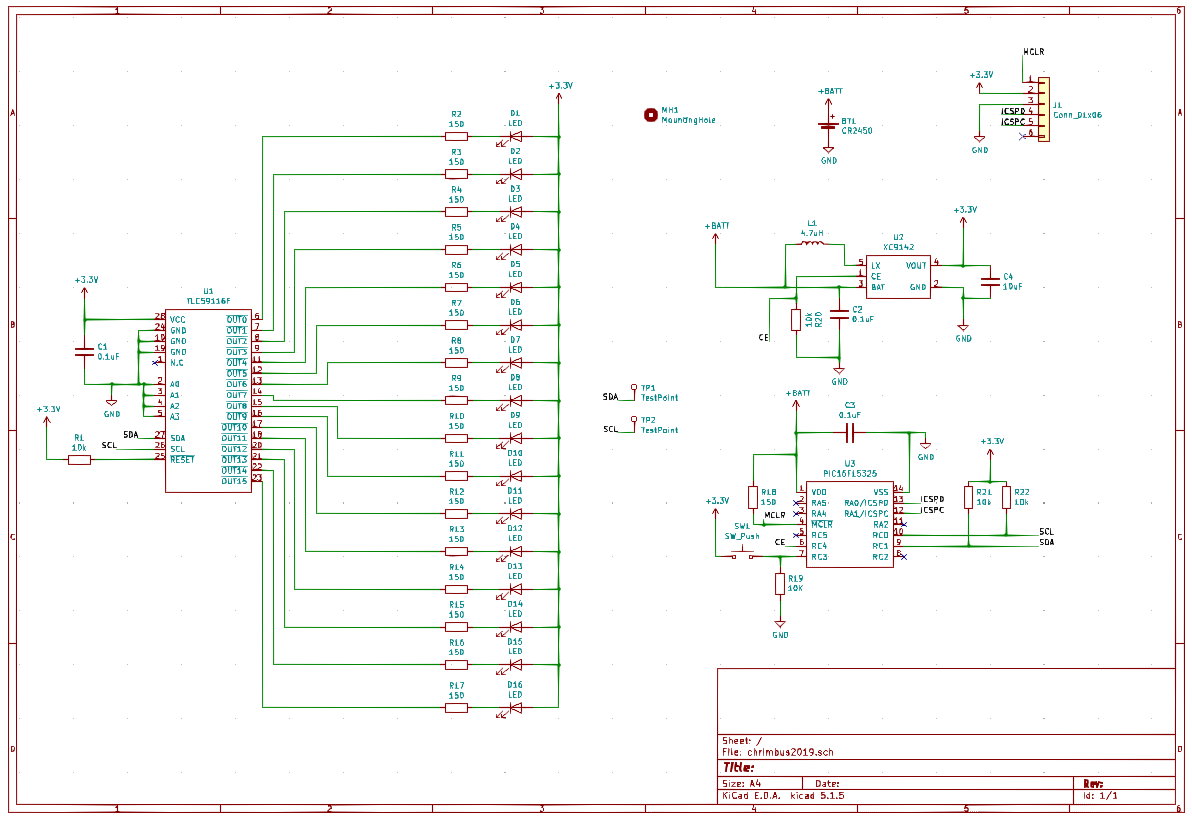

The circuit is shown below:

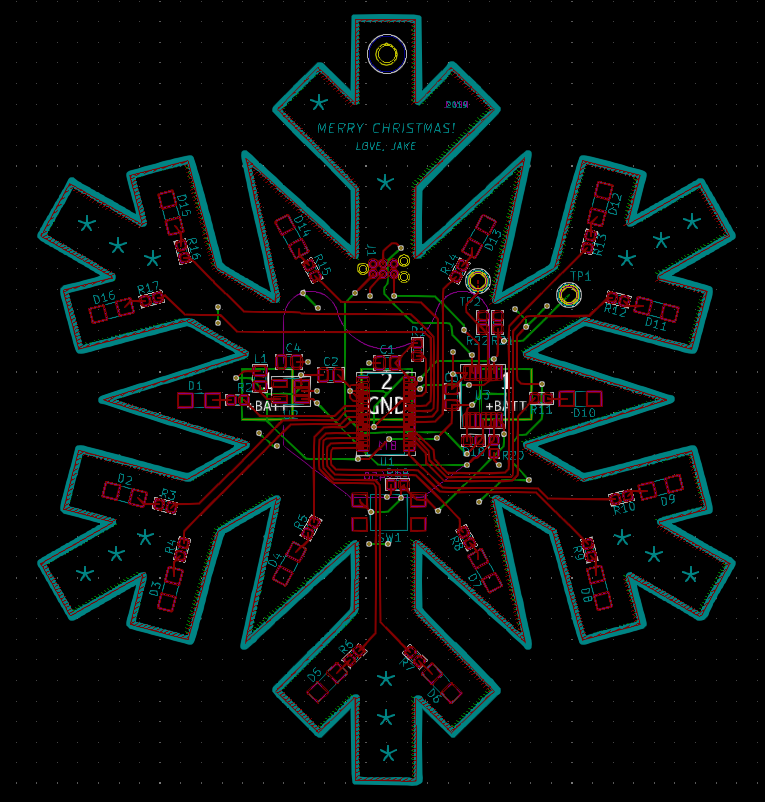

A screen shot of the PCB is shown below:

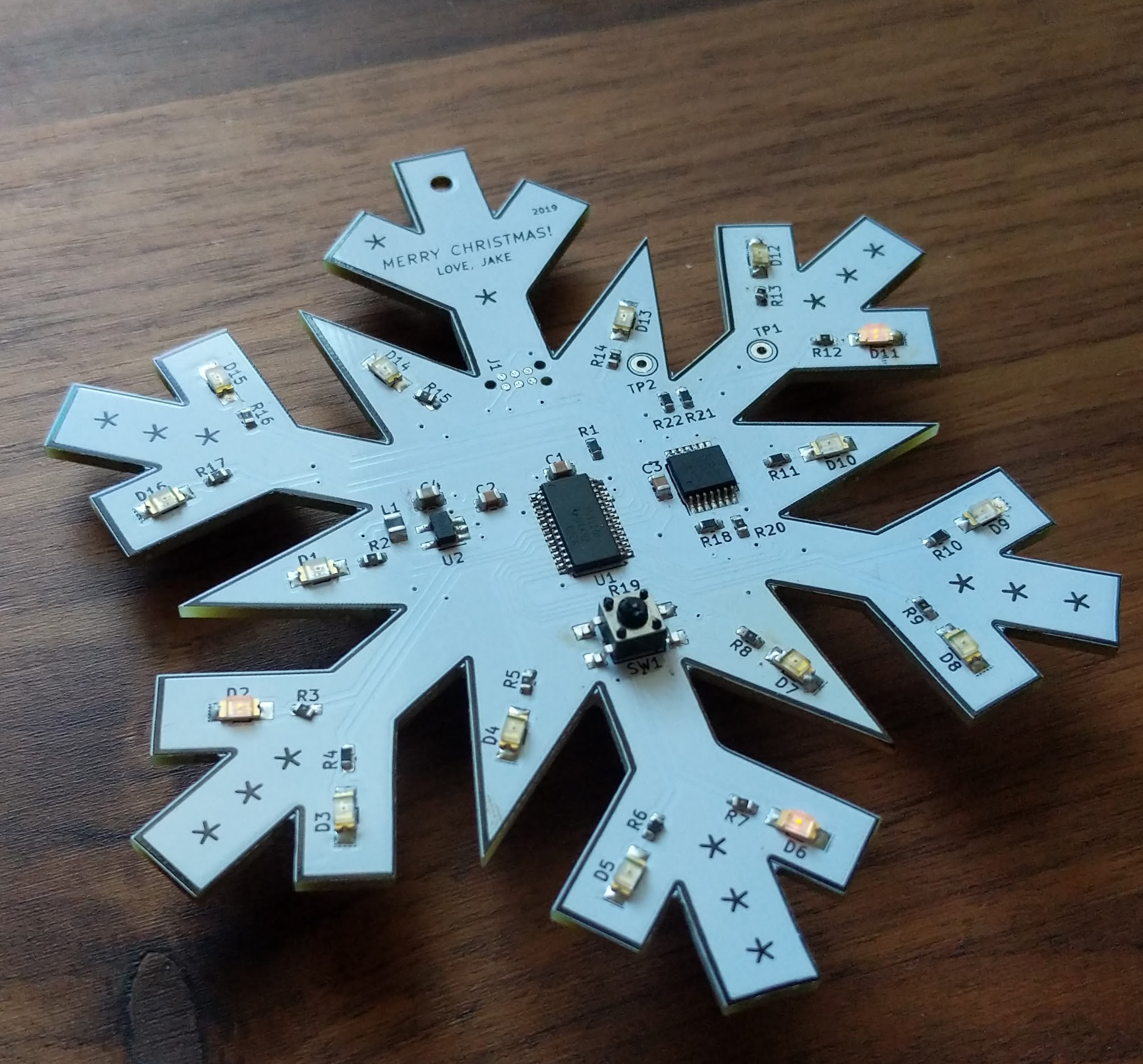

And the final assembly here:
The source code and gerbers can be found in my Github repository.
